DIY Remote Controlled & Manual Blast Gates - Complete Pack
Remote Controlled & Manual Ball Valve Blast Gates (Digital Plans + Arduino System + Cyberbrick)

Upgrade your dust collection system with this complete set of 3D-printable blast gate designs: now updated to include the latest electronic control system, Arduino-based automation, and all previous versions!

This pack brings together every version of the project to date, including the original Bambu Labs CyberBrick setup and the latest upgraded electronics platform.

Whether you want a simple manual gate, a remote-controlled system, or a fully automated workshop setup, this package gives you everything you need to get started.

What This System Does
Print and build your own ball valve blast gates that can be:
  • Operated manually.
  • Controlled remotely via RF remotes or Bambu Labs Cyberbrick.
  • Expanded into a fully automated dust collection system using Arduino.

The updated system introduces improved reliability, expanded functionality, and a more flexible electronics platform for those who want to take it further.

Included Gate Sizes
This pack includes designs to suit a wide range of common dust collection sizes:
  • 50mm (2.0") (New)
  • 61.5mm (2.5")
  • 63.0mm (2.5")
  • 63.5mm (2.5")
  • 100mm (4.0")
  • 107mm (4.0") (Updated)
  • 127mm (5.0") (Updated)
  • 153mm (6.0") (Updated)

Pipe Dimensions:
  • OD: 64.5 / 66 / 66.5mm - ID: 61.5 / 63 / 63.5mm
  • OD: 100 / 107mm - ID: 96 / 103mm
  • OD: 158mm - ID: 153mm

Key Features
  • Compact ball valve design: saves space vs traditional slide gates
  • Remote control capability: open/close gates from anywhere in your shop
  • Expandable Arduino system: build a fully automated dust collection setup
  • Manual versions included: simplified gate design
  • Multiple servo options supported: tailor to your build and torque needs

What’s Included: 3D Print Files (STL)

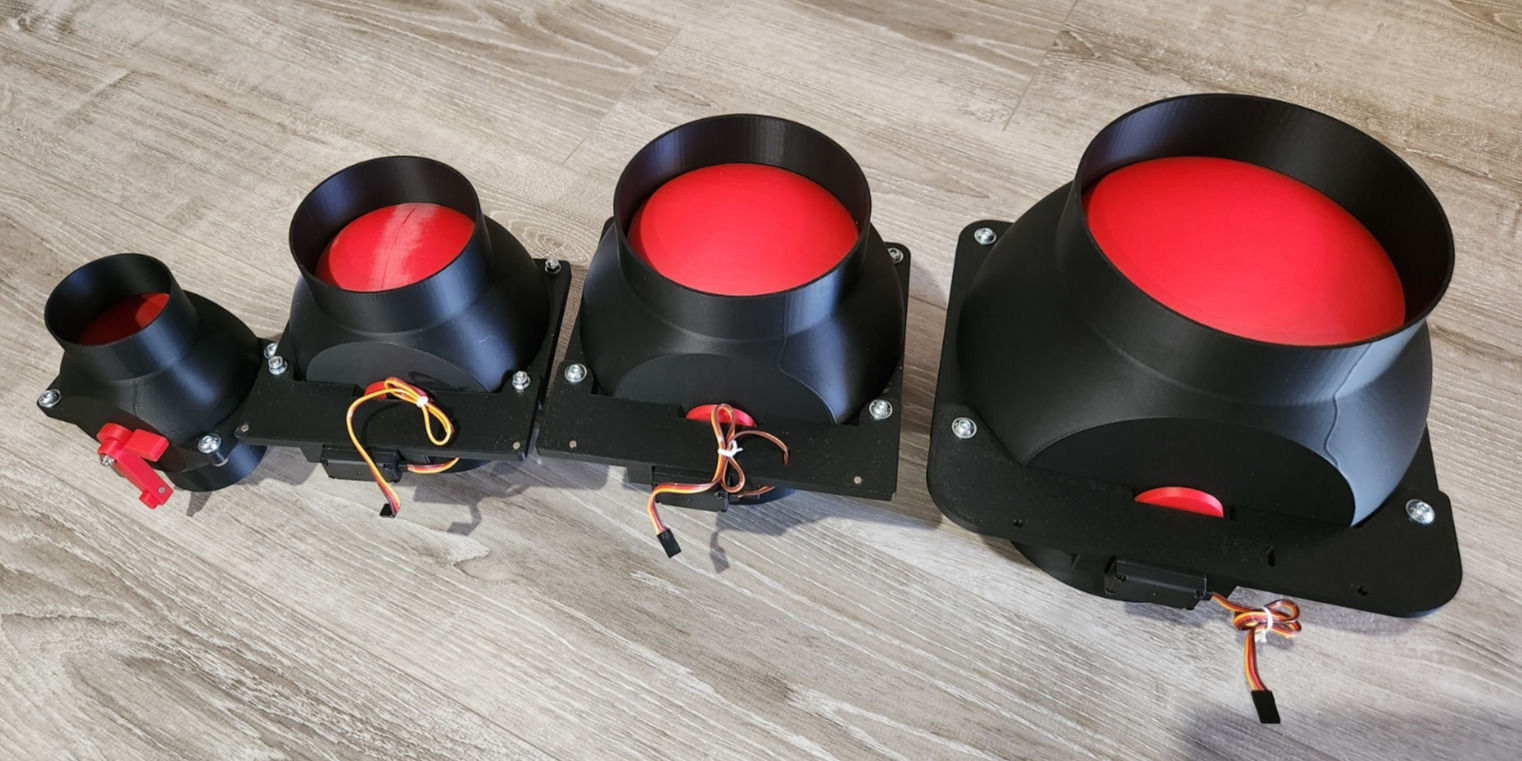

  • Remote controlled ball valve gates - 4" / 5" / 6"
  • Manual ball valve gates - 2.0" / 2.5" / 4" / 6"
  • Manifold gate systems
  • Updated and legacy versions of key designs
  • Full range of size variants listed above

Electronics & Control System Files (NEW)
Updated Arduino code for:
  • Gate modules (servo control)
  • Control modules (power sensing & system control)
  • Remote-only configurations
  • Wiring diagrams and schematics
  • Example configurations and base programs to build from
  • These are the same core programs used in my workshop and demonstrated in the videos, provided as a starting point for your own setup.

Legacy System Included Still
  • Original Bambu Labs CyberBrick configuration files
  • Original remote-control implementation This ensures full backwards compatibility and gives you the option to choose the system that best suits your needs.

Build Plate Files
  • Bambu Studio (.3MF)
  • Orca Slicer (.3MF)

Additional Resources
  • Hardware recommendations and parts list
  • Links to key components used in the build

DIY Remote Controlled & Manual Blast Gates - Complete Pack

SKU: PBWD-BLAST-GATE-ALL
$65.00Price

  • All files can be printed using standard PLA or PETG if preferred.

    Please ensure you understand your 3D printer.  The fit and performance of your gates will rely heavily on the accuracy of your printer and the tolerances it's capable of.

    Take into consideration the environment you'll be using this in, and account for humidity and temperature when choosing your filament type.
